Ella Self
Under certification 10 G New LXF
Engraving Product 100 x 30 mm [3.93 x 1.18 in] col 00 min 10
Pre-spaced decals Product 100 x 20 mm [3.93 x 0.78 in] col 01 min 01
Interest FR MC MI PA
Crash test 10 G

Ella Self

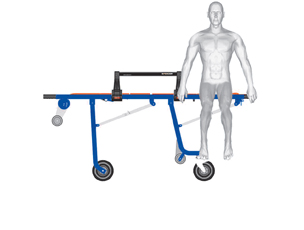

Roll-In Stretcher

The construction technique originates from an experience that has allowed us to substitute the rivets with highly resistant welding. Every part of the frame is individually tested and the trolley's compound release levers are extremely simple and reliable. The design is extremely simple and consequently not weighed down by unnecessary details. Its originality and genius lies in the great resistance, achieved also by avoiding any architectural fantasy. With regards to the adjustment of the loading level height, the Ella Self provides an easy and immediate solution, again on the right track to solve any problem in this respect.

At the beginning of the 90s along with Ella Self, the concept of polychromes as an indispensable instrument in the ambulance stretcher was established. Because rescue operators are technicians and professionals, but also people who aware of what is around them. Available in a varnished blue, and hand polished steel.

The extremely contained cost, the safety in use reducing accidents to the operator, the higher rapidity of use make it an indispensable instrument for any medical company. The Ella Self stretcher is supplied with two straps model STX 592.

Self Effect

The advanced distribution of the weight when loading or unloading enhances the Self effect, reducing the manoeuvre to a pushing movement.

Stability

An exceptional geometry gives stability to the stretcher during transportation. The weight of the patient is however distributed on the stretcher itself.

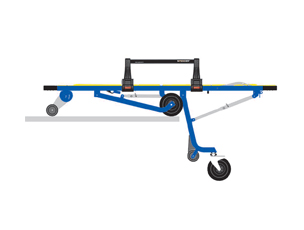

Ambulance Platform

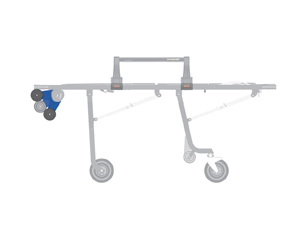

The actual structure of Ella Self has allowed the simplification of interventions, because it adapts to the ambulance platform. With a simple intervention on the geometric scheme of the anterior axis, the loading height, can be modified.

Headrest

Spencer stretchers are also distinguished by their MBC backrest mechanical regulation system, a real milestone in the technique of blocking systems. A system that guarantees trustworthiness and durability for millions of manoeuvres without having to use any kind of lever and above all allows raising of the backrest even laterally. To reset the level or select intermediate positions you use just one hand to activate the ergonomic handle, placed in a distal position, easily found and at the same time, sustaining the weight.

Trendelenburg

A clever and unprecedented mechanical system, that interacts with a rack made from the top of the patient surface mould. It assures the use of the anti-shock system in one swift movement, without the need to use compound levers. To reset the level or select intermediate positions you must modify the position of an easily identified lateral lever.

Fowler

The two configurations, anti-shock and comfort are operated simply by intervention on any area of the patient surface. For safety reasons, resetting is carried out using two lateral levers.
